Curtainsider trailers are designed to make loading and unloading more accessible, but keeping the curtain operating correctly depends on several smaller components working together.
From buckles and bottom straps to rollers, hangers and tensioners, each part has a role in how the curtain moves, fastens and remains secured.
Over time, regular use, exposure to the elements and general wear can affect these components.
Sometimes the signs are obvious. A frayed strap, a broken buckle or a damaged fitting.
Other times, the first indication is simply that the curtain has become harder to operate.
Recognising these warning signs can help identify components that need attention before they cause further problems.
Here are five signs worth looking out for.
1. Curtain Buckles Are Difficult to Fasten or Release
Curtain buckles are used in many curtainsider fastening arrangements, helping secure the curtain through the appropriate straps and fittings.
Depending on the system, these may include locking buckles, overcentre buckles or push-up release mechanisms.
With regular use, buckles and their associated components can become worn or damaged.
Signs to look out for include:
- A buckle that becomes stiff to open or close
- A release mechanism that doesn’t operate smoothly
- Visible bending, distortion or damage
- A buckle that no longer fastens securely
The problem may involve the buckle itself, an associated spring or another part of the fastening arrangement.
Before replacing the component, it’s worth checking the complete assembly to identify where the issue lies.

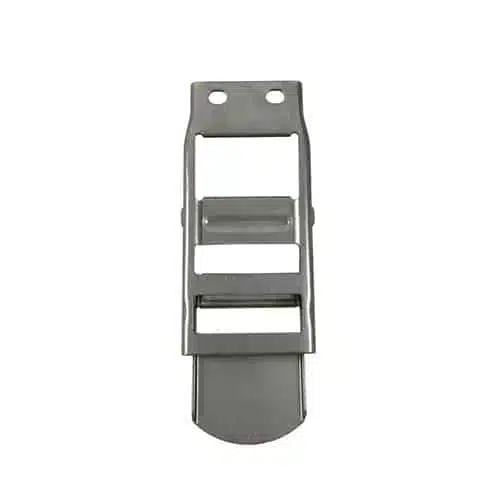

Part-Serv supplies a selection of curtain buckles and associated fittings, including stainless steel locking buckles, overcentre buckles, buckle springs and backing plates.
Choosing the correct replacement means checking the original buckle design, dimensions and fixing arrangement.
2. Bottom Straps Are Frayed, Damaged or No Longer Secure Properly
Bottom straps form part of the system used to secure the lower edge of a curtainsider curtain.
They’re regularly handled during opening and closing, so it’s important to check their condition.
Common warning signs include:
- Frayed or worn webbing
- Cuts, tears or damaged stitching
- Bent or damaged hooks
- Worn or damaged fastening mechanisms
- Straps that no longer secure the curtain as intended
It’s not always the webbing itself that needs replacing.
Sometimes the issue involves the hook, buckle or another component within the strap assembly.

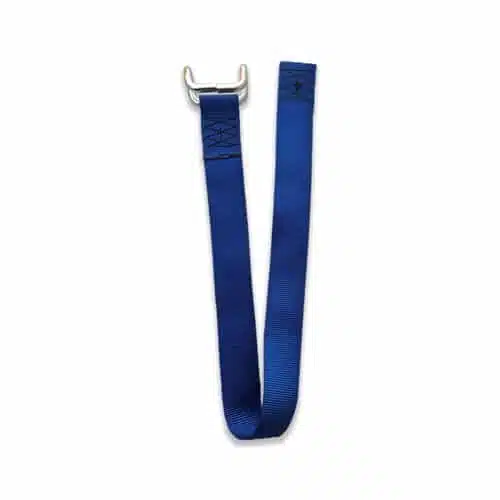

Part-Serv supplies a range of curtainside bottom straps, including straps with closed rave hooks, complete strap assemblies and replacement tail-piece webbing.
Different lengths, widths, hook designs and fastening arrangements are available.
When sourcing a replacement, it’s important to match the original configuration rather than relying on appearance alone.
Damaged straps or securing fittings should be assessed and replaced as appropriate before the curtain is returned to service.
3. The Curtain Is Becoming Difficult to Slide
A curtainsider curtain should move along its track in accordance with the design of the system.
If the curtain becomes noticeably harder to move, there may be an issue with one or more of the components involved in its movement.
Rollers and bobbins are among the parts worth checking.
Possible signs include:
- Increased resistance when moving the curtain
- Uneven or restricted movement
- Unusual noises during operation
- Rollers that don’t rotate freely
- Visible damage to roller wheels or mountings
These symptoms don’t always mean a roller is faulty.
The track, curtain alignment and associated fittings may also need attention.
However, worn or damaged rollers can contribute to movement problems.

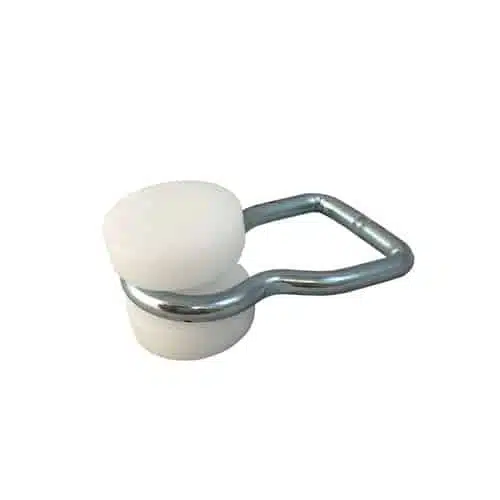

Part-Serv’s range includes bobbin rollers with wire brackets, steel wheel rollers with net hangers and steel wheel rollers with straight stems.
Because roller diameter, mounting style and attachment design can vary, selecting a compatible replacement is important.
4. Hangers or Curtain Fittings Show Signs of Damage
Curtainsider systems can include a variety of fittings used to support, connect or attach components.
Depending on the arrangement, these may include hangers, extension straps, D-rings and other associated fittings.
Although they’re often relatively small, damage to these components can affect the wider system.
Things worth checking include:
- Bent or distorted metal fittings
- Frayed or damaged extension straps
- Worn attachment points
- Loose or damaged connections
- Fittings that no longer operate or attach as intended
Part-Serv supplies several types of associated components, including extension straps with roller top fixings, extension straps with snap-hook top fixings, heavy-duty D-rings and three-bar slides.
Not all fittings are interchangeable, even when they look similar.
Checking the original component’s dimensions, fixing style and intended application can help identify a suitable replacement.
5. Curtain Tensioners Aren’t Operating as They Should
Curtain tensioners are used in many curtainsider systems to apply and maintain the appropriate tension when the curtain is secured.
If the mechanism becomes difficult to operate or no longer functions correctly, it may need further inspection.
Possible warning signs include:
- A tensioner handle that is stiff or difficult to operate
- Visible damage to the mechanism
- Loose, missing or damaged fittings
- A tensioner that doesn’t maintain the intended tension
- Unusual movement or resistance during operation
The issue may involve the complete tensioner or an individual component within the assembly.
Depending on the design, associated parts can include handles, locking pins, couplings and connectors.
Part-Serv supplies curtain tensioners alongside a selection of individual replacement components.
Before replacing a part, it’s important to identify the original mechanism and check compatibility.
A damaged or incorrectly functioning tensioner should be assessed before the curtain is used again.
Why It’s Important to Check the Complete Curtain System
One thing worth remembering is that the component showing the symptoms isn’t always the underlying cause.
A curtain that’s difficult to slide might have a damaged roller, but the track or alignment could also be contributing to the problem.
A buckle that won’t fasten correctly might be worn, or there could be an issue with the strap or associated fittings.
That’s why looking at the complete arrangement is often more useful than focusing on one component in isolation.
Regular visual checks can help identify damaged webbing, worn fittings, loose components and mechanisms that aren’t operating as intended.
Where damage or incorrect operation could affect the curtain’s security, the issue should be addressed before the vehicle is returned to service.
Keeping Your Curtainsider Components in Good Condition
Curtainsider systems rely on a combination of components to operate as intended.
Buckles and bottom straps help secure the curtain, rollers and bobbins support movement, and tensioners help maintain the required curtain tension.
Hangers and associated fittings also play their part in compatible systems.
Recognising signs of wear or damage can make it easier to identify which components need further attention.
And when a replacement is required, choosing the correct design and specification is just as important as identifying the faulty part.
Need Replacement Curtainsider Parts?
Part-Serv supplies a range of curtainsider trailer components, including curtain buckles, backing plates, bottom straps, rollers, bobbins, hangers and tensioner parts.
Know the part number?
Send it to our team and we’ll help you find the component you’re looking for.
Not sure what you need?
Send us photographs, measurements and any manufacturer details or markings you can find.
Our parts team will do their best to help identify a suitable replacement for your application.
Email: sales@part-serv.com
Call: 01733 977584
Keeping the right curtainsider components in good condition helps keep trailers operating as intended.
